PRODUCTS DETAIL
| Material | PPGI;PPGL;GI;GL |
| Thickness | 0.17-1.0mm |
| Width | 800-1200mm |
| Length | 1000-3500mm or as require |
| Coating type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) |
| Painting Thickness | Z40-275; AZ30-AZ150; Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Pallte Weight | 3-5 Tons |
| Annual Output Quantity | 350,000MT |
| MOQ | 25 tons or one container |
| Payment | T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface structure | Norma, Matt, PVC film, wood grain, Flower Grained, embossed, etc |
| Color chart | RAL color number |
| Application | Exterior and interior wall,roof etc |

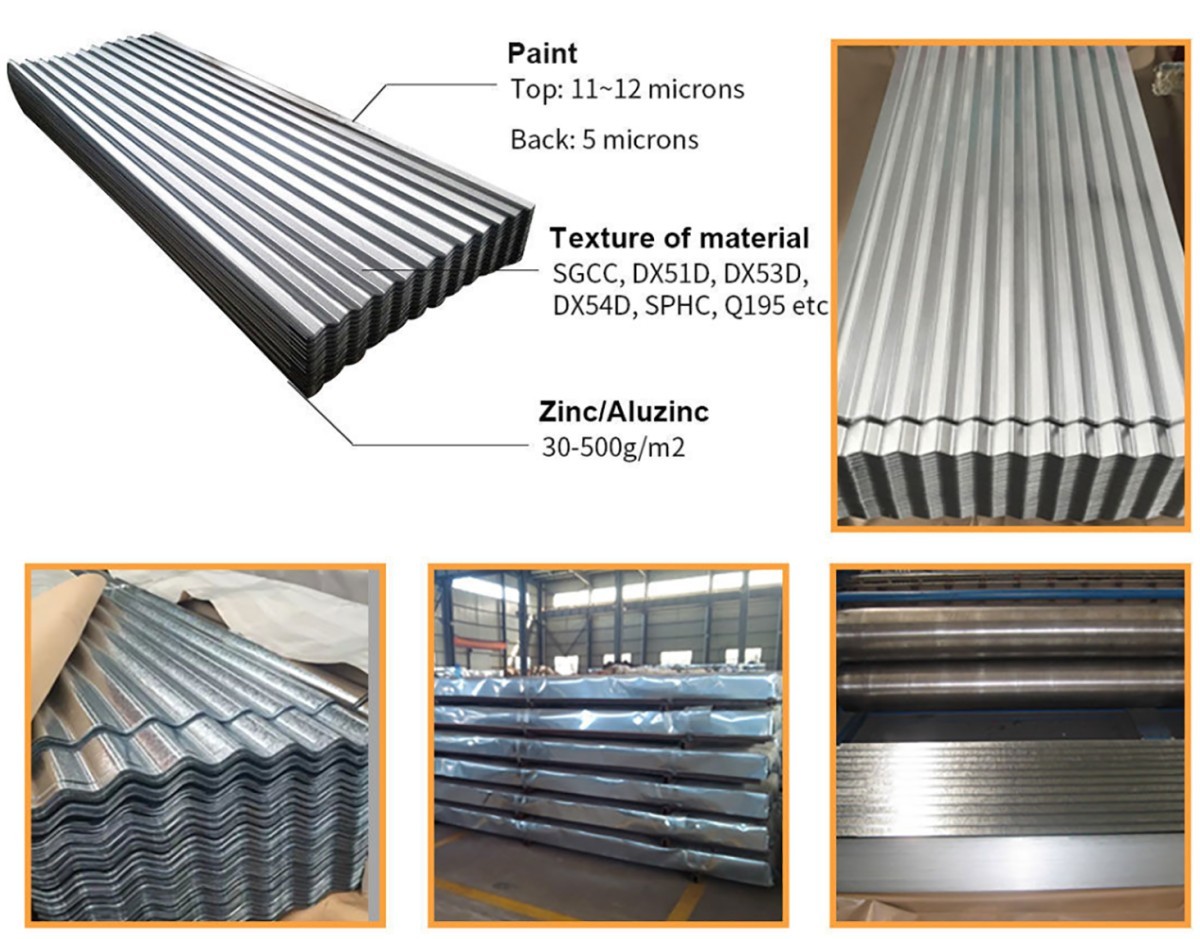

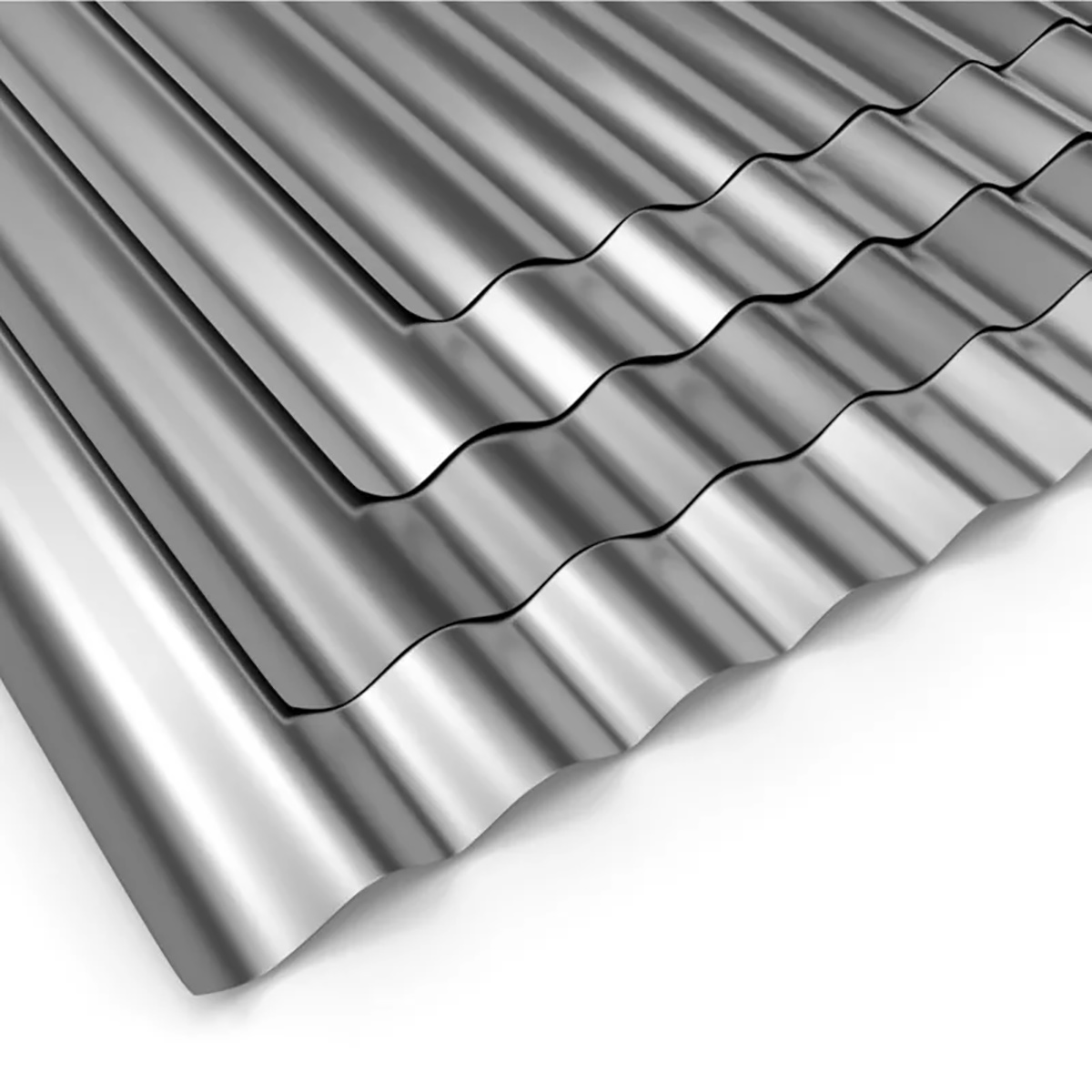

GALVANIZED ROOFING SHEET
| Name | Galvanized Roofing Sheet |
| Base Material | GI, GL or PPGI/PPGL |
| Thickness | 0.12~0.8 mm |
| Width | 762mm(BC) / 680,670,660,655,650mm(AC) |
| 9 waves914mm(BC) / 815,810,790,780mm(AC) |
| 11 waves 1000mm(BC) / 910,905,900,880,875mm(AC) |
| 12 or 14 waves OR OEM |
| Zinc Coating | Z40-275 g/m2 AZ30-AZ155g/m2 |
| Surface | Ral Color/ Silver |
| Material | SGCC, DX51D, SGCH |
Popular galvanized roofing sheet and color coated roofing sheet, with widely used field and long lifespan, most suitable for construction building, roofing sheet etc.
| Weight per Bundle | 2-4tons |
| Package | Covered with a layer of plastic film and cardboard, packed onthe wooden pallets, bound with iron belt, loaded in the containers |
| 20' container weight | 25-28tons (unless there is limited weight at destination port) |
| Logo | Printed according to your design |
| Other shapes | T shape or other corrugated for choose |
| Thickness | 0.12mm-0.8mm |
| Width | 660~1150mm |
| Length | 1000-11800mm or as your requst |
| Zn Coating | 30-275g/m2 |
| Grade | DX51D+Z | CS A | SGCC | SGC340 | S220GD+Z |
| DX52D+Z | CS B | SGCD | SGC400 | S250GD+Z |
| DX53D+Z | CS C |
| SGC440 | S280GD+Z |
| DX54D+Z | FS A |
| SGC490 | S320GD+Z |
| DX56D+Z | FS B |
| SGC510 | S350GD+Z |
| DX57D+Z |
|
| SGC570 | S550GD+Z |
| Surface Treatment | Chromed/ Oiled/ Passivation/ Dry |
| Spangle | Regular spangle, minimized spangle , big spangle, zero spangle |
| Hardness | Soft, Full hard, Half hard |
| Packing | Standard export package. Steel pallet about 3 tons.(Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet+package strip+corner protected) |
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings |
| Advantages | 1.Design according to customers 'requirements |
| 2.Production under ISO9001-2008 Quality System |
| 3.Easy to be installed as light weight |
| 4.Our products are recyclable materials |
| 5.The less construction period, the more using time. |
| 6.paint your logo for free |
| Steel grades | Chemical composition% | Residual Element> | Tensile strength(MPa) |
| C%< | Si%< | Mn%< | P%< | S%< | Alt< |
|
|
| SGCC, DX51D+Z | 0.07 | 0.03 | 0.5 | 0.025 | 0.025 | 0.02 | Cu<0.10Ni<0.08Cr<0.10As<0.05Sn<0.05 | 270-500 |
| DX52D+Z | 0.06 | 0.03 | 0.45 | 0.025 | 0.025 | 0.02 |
| 270-420 |
| DX53D+Z | 0.03 | 0.03 | 0.4 | 0.02 | 0.02 | 0.02 |
| 270-380 |
| S220GD+Z | 0.17 | 0.3 | 1 | 0.035 | 0.3 | 0.02 |
| 300-440 |
| S250GD+Z | 0.17 | 0.3 | 1 | 0.035 | 0.3 | 0.02 |
| 330-470 |
| S350GD+Z | 0.2 | 0.55 | 1.6 | 0.035 | 0.3 | 0.02 |
| 420-560 |
CUSTOMIZED SERVICE
FACTORY SHOW
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7.Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.
